COMM 24VDC Doppler Wind Lidar Wind Power Prediction System

Name: COMM 24VDC Doppler Wind Lidar Wind Power Prediction System
Brand: MOVELASER
SKU: Molas B300
Price: 6 USD
Availability: InStock
Rating: 4.6 (140 reviews)

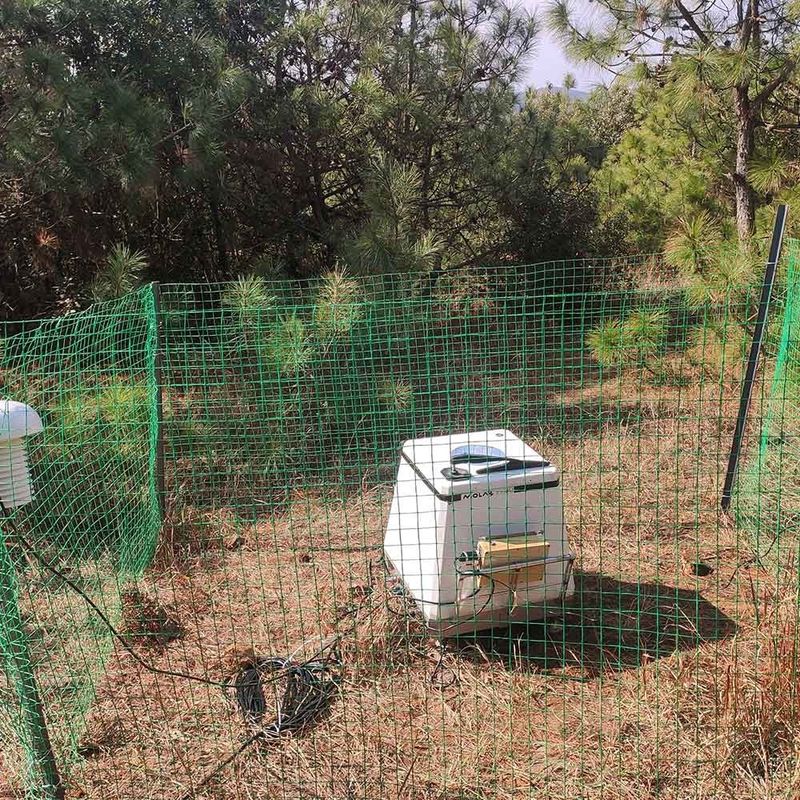

Large Image : COMM 24VDC Doppler Wind Lidar Wind Power Prediction System

Product Details:

Place of Origin:	China
Brand Name:	MOVELASER
Certification:	WINDGUARD / RISO Dtu / DNV GL / Intertek
Model Number:	Molas B300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Dollar 6W$+ （Price consultation customer service）
Packaging Details:	Air Box
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	200 set ，1 month

Contact Now

Detailed Product Description

Measuring Range:	30-300 Meters	Measure The Number Of Layers:	12
Wind Speed Accuracy:	0.1m/s	Range Of Working Temperature:	-40℃ ~ 50℃
Operating Humidity Range:	0% To 100%	Eye Safety:	Class 1M (EN60825-1)
High Light:	24VDC Doppler Wind Lidar , COMM Doppler Wind Lidar , Lidar Wind Power Prediction System

The lidar power supply to supply power for the whole lidar

1,Product introduction

COMM : Output data through serial port (additional order required).

24VDC : Power interface, which connects with the lidar power supply to supply power for the whole lidar.

The four core modules of Molas B300 series are independently designed from fiber laser radar transmitter, laser transceiver system, high-speed data acquisition system, and high-precision data processing software. Each core module has a high degree of matching, which ensures the unified coordination and Data and information security has reached the international advanced level.

2,Product parameters

**General parameters**
Powered by	24V DC / 100~240V
Power	70W
Size	520420550mm
Weight	<50kg
Range of working temperature	-40℃ ~ 50℃
Operating humidity range	0% to 100%
Protection class	IP65 (core module) / IP54 (complete machine)
Eye safety	Class 1M (EN60825-1)

**Measurement parameters**
Measuring distance	30~300m
Measurement layer	12
Sampling rate	1Hz
Wind speed measurement accuracy	0.1m/s
Wind direction measurement accuracy	1°
Wind speed measurement range	0~75m/s
Wind direction measurement range	0~360°
Sweep cone angle	28°

3,Application field

Wind resource assessment / Micro site selection and review / Wind power prediction system

Wind farm / wind farm performance evaluation / Weather detection

COMM 24VDC Doppler Wind Lidar Wind Power Prediction System 0

Tag:

Contact Person: ivyyao

Tel: +86 13072523225

Fax: 86-025-86800073

Other Products

IP67 Grounded MOVELASER Doppler Lidar Wind Data Format ASCII

Measuring range: 30-300 meters

measure the number of layers: 12

Wind speed accuracy: 0.1m/s

Protection class: IP67 (complete machine)

1kW 3500m Altitude Doppler Wind Lidar 5-18 Months Data Storage

Survival wind speed: 70m/s (fixed by foot or by wire rope)

Working altitude: ≤3500m

Running power consumption: ≤1kW

Powered by: 110VAC±20% or 220VAC±20%, 50Hz±10%

Custom Wind Measurement Lidar Programmable PPI RHI DBS LOS VAD Scan

Operating temperature and humidity: -25~+50℃ (extendable to -40~+60℃), 5%~100% RH

IP protection class: Housing IP54, core module IP66

Anticorrosion grade: C4

Survival wind speed: 70m/s (fixed by foot or by wire rope)

Pointing Accuracy 0.1 Degree Doppler Wind Lidar Molas 3D 2Hz Position Update Rate

Scanning method: PPI , RHI , DBS , LOS and Program Scan

Real-time data output form: Profibus DP/Modbus TCP/CAN optional

Telecommunication: 1000BASE-TX or 4G remote access

Operating temperature and humidity: -25~+50℃ (extendable to -40~+60℃), 5%~100% RH

30-300 Meters Molas B300（offshore） Wind Speed Lidar 0.1m/S Accuracy

Measuring range: 30-300 meters

measure the number of layers: 12

Wind speed accuracy: 0.1m/s

Protection class: IP67 (complete machine)
