20KHz Per Channel DC24V 3A Lidar Wind Measurement 0.2m Accuracy

Name: 20KHz Per Channel DC24V 3A Lidar Wind Measurement 0.2m Accuracy
Brand: MOVELASER
SKU: Molas CL
Price: 1 USD
Availability: InStock
Rating: 4.8 (115 reviews)

Large Image : 20KHz Per Channel DC24V 3A Lidar Wind Measurement 0.2m Accuracy

Product Details:

Place of Origin:	China
Brand Name:	MOVELASER
Model Number:	Molas CL

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Dollar 1W$+ （Price consultation customer service）
Packaging Details:	Air Box
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	200 set ，1 month

Contact Now

Detailed Product Description

Ranging Method:	1ToF	Detection Distance:	200m@90% Reflectivity/ 140m@10% Reflectivity
Range Resolution:	≤0.1m	Measurement Accuracy:	±0.2m
Repeated Measurement Accuracy:	±0.2m	Resistance To Ambient Light:	100Klux
Wavelength:	905nm	Repeat Frequency:	20KHz Per Channel
Laser Safety Level:	Class 1	Range Of Working Temperature:	-40℃~+60℃
High Light:	DC24V 3A Lidar Wind Measurement , movelaser lidar wind measurement , 20KHz Per Channel lidar wind speed

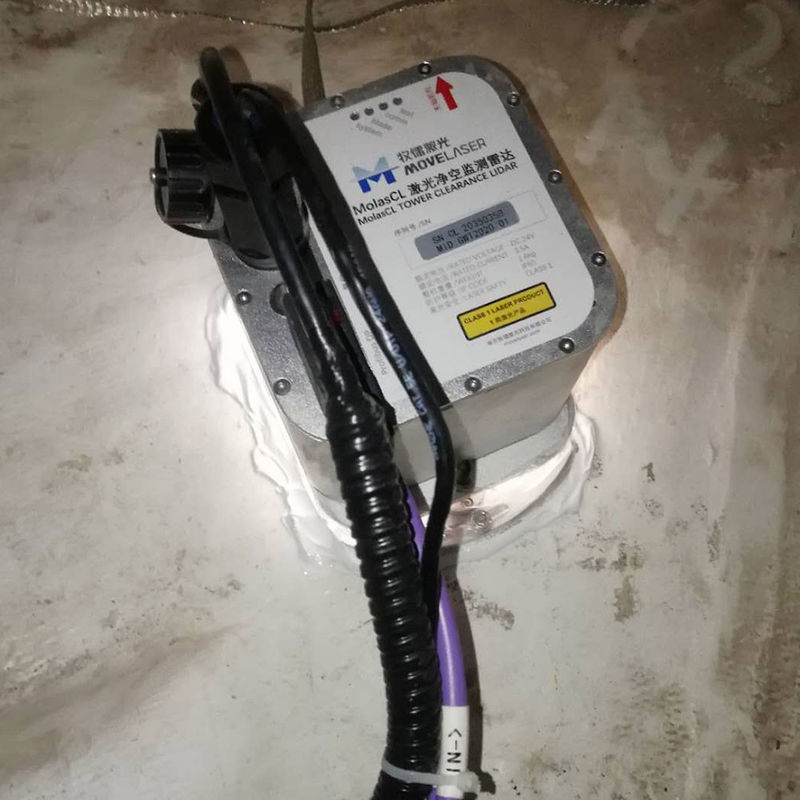

Molas CL Wind Lidar Repeated measurement accuracy ±0.2m

1,Product introduction

The laser pulse of each optical channel of MolasCL has a high repetition frequency of 20kHz, so there are 20,000 ranging data per second, and three optical channels can generate 60,000 ranging data per second.

2,Technical Data Sheet

Ranging index
Ranging method	1ToF
Detection distance	200m@90% reflectivity/ 140m@10% reflectivity
Range resolution	≤0.1m
Measurement accuracy	±0.2m
Repeated measurement accuracy	±0.2m
Resistance to ambient light	100Klux
Optical index
Wavelength	905nm
Repeat frequency	20KHz per channel
Laser safety level	Class 1
Environmental adaptability
Range of working temperature	-40℃~+60℃
Survival temperature range	-45℃~+65℃
Working humidity range	0%~100% RH
Enclosure rating	IP65 (or according to specific needs)
Working acceleration range	-0.5g ～ 0.5g
Beam pointing
Luminous flux 1	0°
Luminous flux 2	2.05°±0.2°
Luminous flux 3	4.09°±0.2°
Output measurement results
Real-time data products	Device ID, directly measure distance, return light intensity, Data valid flag, system status
Fieldbus	Profibus DP / Modbus RTU / CANopen Three fieldbus protocols, and RS485 communication can be customized
Qther
Operating power consumption	Within 60W
Supply voltage and maximum current	DC 24V, 3A
Size	200×200×250mm
