| Measuring Range: | 30-300 Meters | Measure The Number Of Layers: | 12 |
|---|---|---|---|
| Wind Speed Accuracy: | 0.1m/s | Powered By: | 24V DC / 100~240V |
| Power: | 70W | Weight: | <75kg |
| Range Of Working Temperature: | -40℃ ~ 50℃(with Over Temperature Protection) | Operating Humidity Range: | 0% To 100% |
| Eye Safety: | Class 1M (EN60825-1) | Data Format: | ASCII |
| Data Output: | Horizontal Wind Speed, Vertical Wind Speed, Wind Direction Timestamp, GPS, Temperature, Humidity And Pressure, Statistics | Communication: | Ethernet (100BASE-TX) 3G/4G WiFi, Satellite Communication (optional) |
| High Light: | Coherent Doppler Wind Lidar,Horizontal Vertical Wind Speed Lidar,Pulsed Laser coherent doppler lidar |
||
Pulsed laser coherent Doppler principle
1,Product introduction

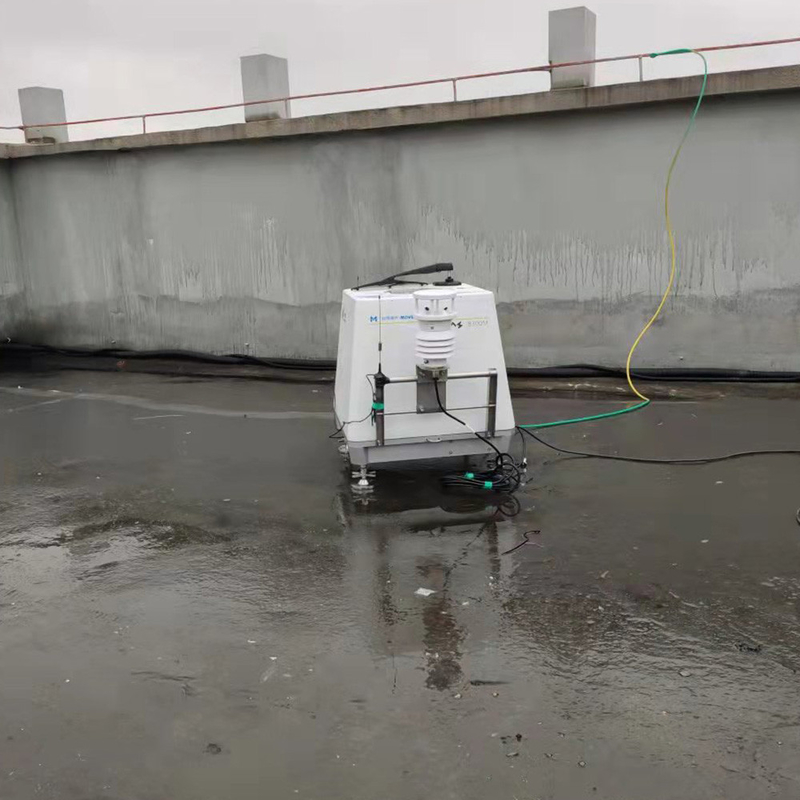

Placement: The radar needs to be placed on a flat ground, and a wooden board or four-footed bricks can be covered under the radar to ensure that the radar is roughly level.
Adjustment of pointing to the north: the arrow on the radar is pointing to the north, and the electronic compass or physical compass such as a mobile phone is used as a reference to adjust the orientation of the device. Radar true north can also be adjusted using GNSS tooling.
Level adjustment: Adjust the four adjustment wheels below the radar (adjust clockwise to extend the feet), so that the horizontal bubble above the radar is within the black circle (the adjustable length of the feet is 40mm). After the adjustment is completed, the radar must ensure that Stable without shaking. There is an electronic compass inside the radar for automatic calibration, but radar leveling is more helpful for accurate measurement data.
2,Product parameters
| Powered by | 24V DC / 100~240V |
| Power | 70W |
| Size | 682mm x 520mm x 641mm |
| Weight | <75kg |
| Range of working temperature | -40℃ ~ 50℃(with over temperature protection) |
| Operating humidity range | 0% to 100% |
| Protection class | IP67 (complete machine) |
| Eye safety | Class 1M (EN60825-1) |
| Measuring distance | 30~300m |
| Measurement layer | 12 |
| Sampling rate | 1Hz |
| Wind speed measurement accuracy | 0.1m/s |
| Wind direction measurement accuracy | 1° |
| Wind speed measurement range | 0~75m/s |
| Wind direction measurement range | 0~360° |
| Sweep cone angle | 28° |
| Data output | Horizontal wind speed, vertical wind speed, wind direction Timestamp, GPS, temperature, humidity and pressure, statistics |
| Data Format | ASCII |
| Communication | Ethernet (100BASE-TX) 3G/4G WiFi, satellite communication (optional) |
3,Application scenarios
① Early detection of wind resources
② Offshore construction and operation and maintenance wind power monitoring
③ Prediction of wind power in offshore wind farms
