Product Details:
Payment & Shipping Terms:
|
| Protection Class: | IP67 (complete Machine) | Measuring Wind Speed Range: | 0~75m/s |
|---|---|---|---|
| Size: | 682mm X 520mm X 641mm | Powered By: | 24V DC / 100~240V |
| Power: | 70W | Weight: | <75kg |
| High Light: | 240V Floating Lidar Buoy,100V floating lidar buoy,ASCII Data Wind Lidar System |
||

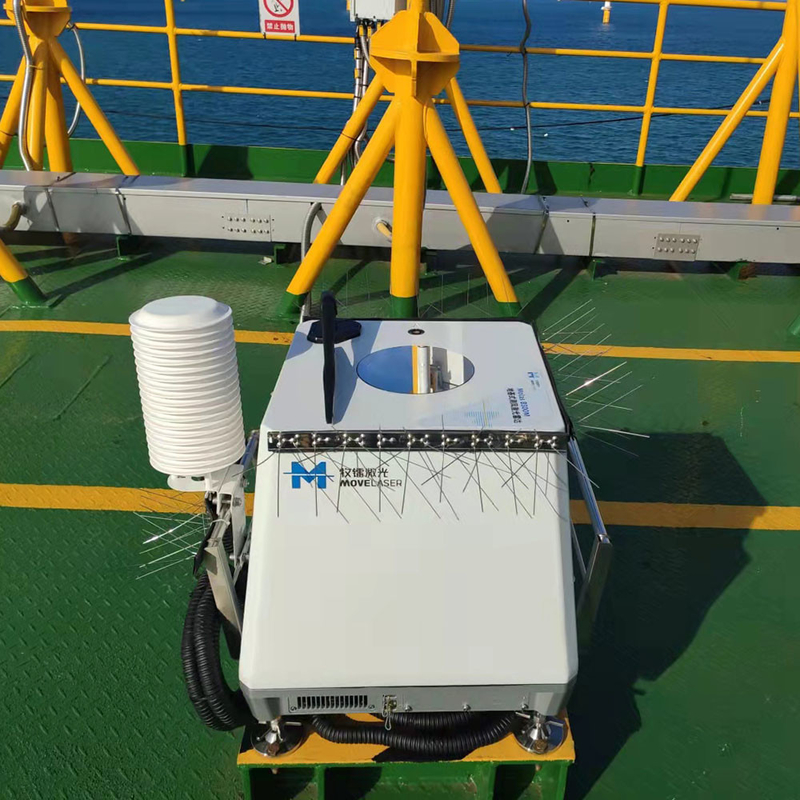

Offshore buoy lidar Wind Lidar System
1,Product introduction
High precision: large buoy combined with advanced attitude algorithm
Large range: 10-300m, 12 levels
Sufficient power supply: can run continuously for up to 2-3 months in no light conditions
2,Product parameters
| Powered by | 24V DC / 100~240V |
| Power | 70W |
| Size | 682mm x 520mm x 641mm |
| Weight | <75kg |
| Range of working temperature | -40℃ ~ 50℃(with over temperature protection) |
| Operating humidity range | 0% to 100% |
| Protection class | IP67 (complete machine) |
| Eye safety | Class 1M (EN60825-1) |
| Measuring distance | 30~300m |
| Measurement layer | 12 |
| Sampling rate | 1Hz |
| Wind speed measurement accuracy | 0.1m/s |
| Wind direction measurement accuracy | 1° |
| Wind speed measurement range | 0~75m/s |
| Wind direction measurement range | 0~360° |
| Sweep cone angle | 28° |
| Data output | Horizontal wind speed, vertical wind speed, wind direction Timestamp, GPS, temperature, humidity and pressure, statistics |
| Data Format | ASCII |
| Communication | Ethernet (100BASE-TX) 3G/4G WiFi, satellite communication (optional) |
3,Application scenarios
① Early detection of wind resources
② Offshore construction and operation and maintenance wind power monitoring
③ Prediction of wind power in offshore wind farms
