| Line-of-sight Detection Distance: | 6km/3km | Distance Resolution: | 30m, 75m |
|---|---|---|---|
| Blind Spot Width: | 50m/100m | Accumulation Time: | 0.5s/1s/2s/4s/8s Optional |
| Radial Wind Speed Measurement Range: | -75～+75m/s | Radial Wind Speed Measurement Accuracy: | 0.1m/s |
| Number Of Distance Gates: | 300 | Laser Safety Level: | IEC 60825-1 (2014) Class 1M Eye Safety |
| Horizontal Scan Range: | 0°～360° | Vertical Scanning Range: | 0°～180° |
| Angular Resolution: | 0.1° | Pointing Accuracy: | 0.1° |
| Maximum Location Update Rate: | 2Hz | Data Storage Time: | 5 To 18 Months |
| Data Format: | .csv File | Environmental Adaptability And Reliability: | -25～+50℃, Can Be Extended To -40～+60℃ |
| Operating Environment Humidity: | 5%～100% RH Without Condensation | Storage Temperature: | -35～+60℃ |
| Storage Humidity: | 5%～100% RH Without Condensation | Size: | 800mm*650mm*11 30mm |
| Weight: | ≤150kg | GNSS Functionality: | Support GPS/Beidou |
| Time Service: | NTP Timing Or GPS/Beidou Timing | ||
| High Light: | 6km Line Of Sight Wind Speed Lidar,Molas 3D Wind Speed Lidar,CSV lidar wind measurement |
||

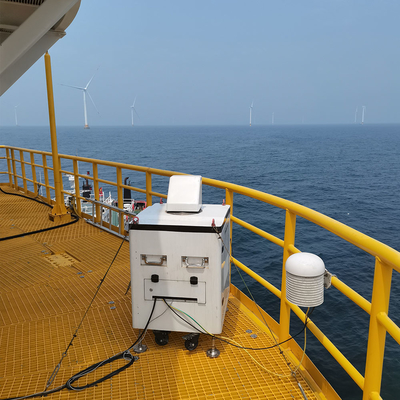

Molas 3D Line-of-sight detection distance 6km/3km Wind Speed Lidar
1,Product introduction
When the radar is placed, there should be no obstacles in the hemisphere area with the radar as the center, so as not to affect the wind measurement effect, or the blocked area is an invalid data area, which can be used normally.
2,Performance parameters
| Basic parameters | |
| Line-of-sight detection distance | 10km (typical case) |
| Distance resolution | 30m/45m/60m/75m optional |
| Accumulation time | 0.5s/1s/2s/4s/8s optional |
| Radial wind speed measurement range | -75~+75 m/s |
| Radial wind speed measurement accuracy | 0.1m/s |
| Number of distance layers | up to 300 |
| Horizontal scan range | 360° × n |
| Vertical scan range | -10°~190° |
| Pointing accuracy | 0.1° |
| Scanning method | PPI , RHI , DBS , LOS and Program Scan |
| Real-time data output form | Profibus DP/Modbus TCP/CAN optional |
| Telecommunication | 1000BASE-TX or 4G remote access |
| Environmental parameters | |
| Operating temperature and humidity | -25~+50℃ (extendable to -40~+60℃), 5%~100% RH |
| IP protection class | Housing IP54, core module IP66 |
| Anticorrosion grade | C4 |
| Survival wind speed | 70m/s (fixed by foot or by wire rope) |
| Working altitude | ≤3500m |
| Other parameters | |
| Running power consumption | ≤1kW |
| Powered by | 110VAC±20% or 220VAC±20%, 50Hz±10% |
| Size | 800mm*650mm*11 30mm |
| Weight | ≤150kg |
| Accessibility | |
| GNSS functionality | Support GPS/Beidou |
| Time service | NTP timing or GPS/Beidou timing |
3,Schematic diagram of 3D scanning Doppler wind Lidar
