Product Details:
Payment & Shipping Terms:
|
| Distance: | 30~300m | Measurement Layer: | 12 |
|---|---|---|---|
| Sampling Rate: | 1HZ | Wind Direction Range: | 0~360° |
| Beam Protection: | Eight-beam VAD | Powered By: | 24V DC / 100~240V |
| High Light: | four beam lidar rental,light detection and ranging lidar rental,four beam offshore wind lidar |
||

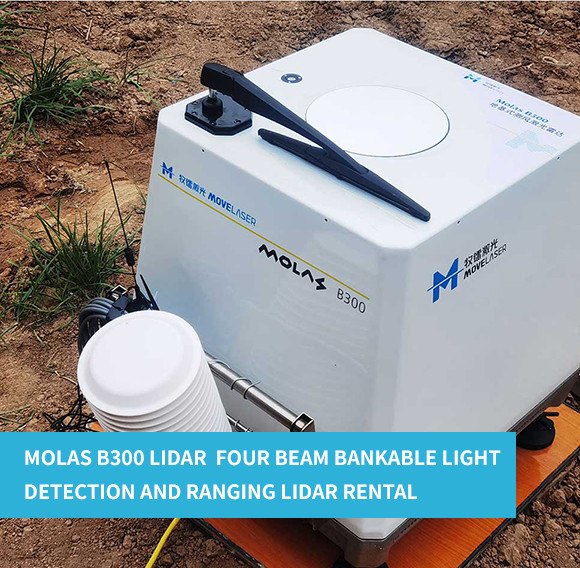

Molas B300 Lidar four beam Bankable light detection and ranging lidar rental
| Product introduction
The signal light generated by the fiber laser is transmitted to the air to be measured through the optical antenna, and interacts with the aerosol particles to generate a backscattered signal containing its velocity information. According to the Doppler principle, the Doppler frequency shift fd of the echo signal is proportional to the velocity of the aerosol particles (i.e., the wind speed). Therefore, the backscattered signal received by the optical antenna can be processed with the local optical beat frequency and digital demodulation generated by the fiber laser in the system to obtain the wind field information of the target to be measured.
| Application scenarios
Large range
High accuracy
Simple installation and easy maintenance
| Product parameters 参数
| Distance | 30~300m |
| Measurement Layer | 12 |
| Sampling Rate | 1HZ |
| Weight | <50kg |
| Range of working temperature | -40℃ ~ 50℃ |
| Wind Direction Range | 0~360° |
| Protection class | IP65 (core module) / IP54 (complete machine) |
| Beam protection | Eight-beam VAD |
| Product Features
| Product Image
