| Line-of-sight Detection Distance: | 8km/4km | Distance Resolution: | 30m, 75m |
|---|---|---|---|
| Accumulation Time: | 0.5s/1s/2s/4s/8s Optional | Radial Wind Speed Measurement Accuracy: | 0.1m/s |
| Vertical Range: | -10°~190° | Laser Safety Level: | IEC 60825-1 (2014) Class 1M Eye Safety |
| Name: | Wind Resource Measurement Lidar Rental For Wind Farm | Keyword: | Wind Speed Lidar Rental |
| High Light: | wind resource measurement lidar rental,wind farm lidar rental,wind speed lidar rental |
||
Lidar rental Sight wind Speed Range -75~+75 m/s for wind resource measurement wind farm
| Product introduction
Using Molas 3D can completely avoid the problem of insufficient detection by traditional detection methods, and can provide excellent performance in wind field information in sunny weather. Molas 3D continuously scans the glide path area of the aircraft, measures headwinds and crosswind, calculates the wind shear index, and provides real-time warnings
| Application scenarios
Wind resource assessment, measuring wind field information in a large area, reducing site selection risk
Long-distance power curve measurement, wake eddy current measurement, optimize wind energy utilization, optimize unit efficiency
| Product parameters
| Basic parameters | |
| Line-of-sight detection distance | 8km (corresponding to 75m distance resolution) 4km (corresponding to 30m distance resolution) |
| Distance resolution | 30m/45m/60m/75m optional |
| Accumulation time | 0.5s/1s/2s/4s/8s optional |
| Radial wind speed measurement range | -75~+75 m/s |
| Radial wind speed measurement accuracy | 0.1m/s |
| Number of distance layers | up to 300 |
| Horizontal scan range | 360° × n |
| Vertical scan range | -10°~190° |
| Product Features
Rich measurement information:3D wind field refined measurement, up to 300 custom distance layers
large range:4/8km typical detection distance
High precision:Pointing accuracy 0.1°, visual direction wind speed accuracy 0.1m/s
Rich scanning methods:PPI/RHI/DBS/LOS/ Programmable arbitrary scan method
Flexible deployment:Small and lightweight, easy to transition and build
all-weather:No fear of harsh wild environment, with LPZ0B minefield survivability
Safe to use:With GPS location reporting and geo-fencing functions, data encryption has no risk of leakage
Rich configuration:2 distance resolutions and 5 accumulation times to choose from

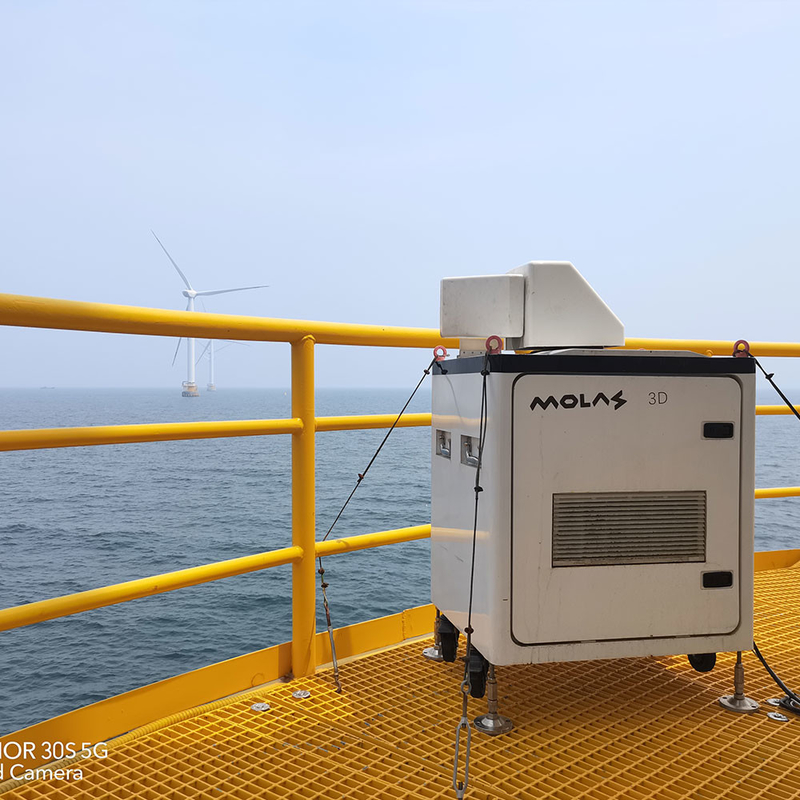

| Product Image
