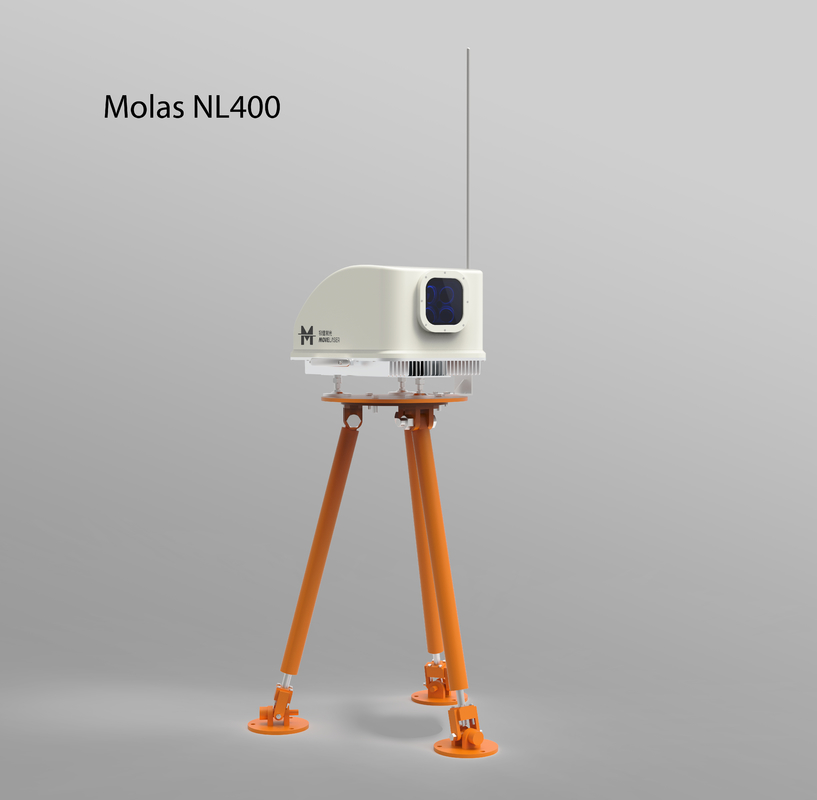

4Hz, 4 beams, 10 simultaneous measurements ranges Nacelle Wind Lidar
| Product introduction
Molas NL series is a nacelle wind lidar independently developed for the intelligent application scheme of wind power customers. It is a laser remote sensing wind measurement device installed on the top of the wind turbine nacelle. The lidar adopts the coherent detection system, and based on the principle of laser Doppler frequency shift, realizes the accurate measurement of 50m-200m / 400m / 750m vector wind field in front of the fan impeller.
For fan testing, such as blade load analysis, power curve testing, wake analysis, etc.
| Product parameters
|
Measure the distance |
50~200m |
|
Number of measured sections |
10 |
|
Sampling frequency |
4Hz |
|
Wind speed measurement range |
-50 ~50m/s |
|
Wind direction measurement range |
-180°～180° |
|
Wind speed accuracy |
0.1m/s |
|
Accuracy of wind direction |
±0.5° |
|
Beam pointing accuracy |
±0.1° |
|
Anticorrosion Grade |
ISO C5 |
|
Power supply |
100 VAC~240VAC ±10% 50Hz~60Hz ±6% |
|
Power |
≤300W |
|
Operating temperature range |
-40℃～60℃ |
|
Survival temperature range |
-40 ℃ ~ 65 ℃ (power off),-45 ℃ ~ 65 ℃ (charged) |
|
Working humidity range |
0～100% RH |
|
Survival wind speed |
70m/s |
|
Working acceleration range |
-0.5g～0.5g |
|
IP protection level |
Equipment in engine room: IP54,Equipment outside engine room: IP66 |
|
beam structure |
4 beams, horizontal angle 30° |
|
Radiation protection |
CISPR 11 |
|
Weight |
OH约23Kg,DU约6Kg |
| Product Features
The laser wind measuring radar wind measuring instrument is fixedly installed on the top of the wind turbine cabin, parallel to the horizontal central axis of the wind turbine. The lidar anemometer can measure the accurate wind direction data excluding the wake of the wind turbine. Specifically, the lidar anemometer observes the turbulent structure of the wind fluid through the staring scanning mode, and simultaneously uses multiple beam geometric scanning bands, that is, lidar wind measurement. The comprehensive wind direction data can be measured with high resolution from the region to eliminate the influence of the wake of the wind turbine.
