Product Details:
Payment & Shipping Terms:
|
| Frequency: | 4Hz | Beam Pointing Accuracy: | ±0.1° |
|---|---|---|---|
| Anticorrosion Grade: | ISO C5 | Survival Temperature Range: | -40 ℃ ~ 65 ℃ (power Off),-45 ℃ ~ 65 ℃ (charged) |
| Working Humidity Range: | 0～100% RH | Working Acceleration Range: | -0.5g～0.5g |
| Beam Structure: | 4 Beams, Horizontal Angle 30° | ||
| High Light: | high accuracy remote sensing lidar,nacelle remote sensing lidar,remote sensing nacelle lidar |
||
Lidar-based feedforward control of wind turbines Wind Direction Accuracy 0.5°
| Product introduction
Molas NL series is a nacelle wind lidar independently developed for the intelligent application scheme of wind power customers. It is a laser remote sensing wind measurement device installed on the top of the wind turbine nacelle. The lidar adopts the coherent detection system, and based on the principle of laser Doppler frequency shift, realizes the accurate measurement of 50m-200m / 400m / 750m vector wind field in front of the fan impeller.
True front wind measurement
Real time data transmission and local storage
Accuracy up to 0.1m/s and 0.5°
high sample rate
Multiple distance layers
large range
| Product parameters
|
Measure the distance |
50~200m |
|
Number of measured sections |
10 |
|
Sampling frequency |
4Hz |
|
Wind speed measurement range |
-50 ~50m/s |
|
Wind direction measurement range |
-180°～180° |
|
Wind speed accuracy |
0.1m/s |
|
Accuracy of wind direction |
±0.5° |
|
Beam pointing accuracy |
±0.1° |
|
Anticorrosion Grade |
ISO C5 |
|
Power supply |
100 VAC~240VAC ±10% 50Hz~60Hz ±6% |
|
Power |
≤300W |
|
Operating temperature range |
-40℃～60℃ |
|
Survival temperature range |
-40 ℃ ~ 65 ℃ (power off),-45 ℃ ~ 65 ℃ (charged) |
|
Working humidity range |
0～100% RH |
|
Survival wind speed |
70m/s |
|
Working acceleration range |
-0.5g～0.5g |
|
IP protection level |
Equipment in engine room: IP54,Equipment outside engine room: IP66 |
|
beam structure |
4 beams, horizontal angle 30° |
|
Radiation protection |
CISPR 11 |
|
Weight |
OH约23Kg,DU约6Kg |
| Product Features
Reduce fatigue load by 5%-10%
Reduce the ultimate load by 10%-15%
Extend fan life and reduce fan costs

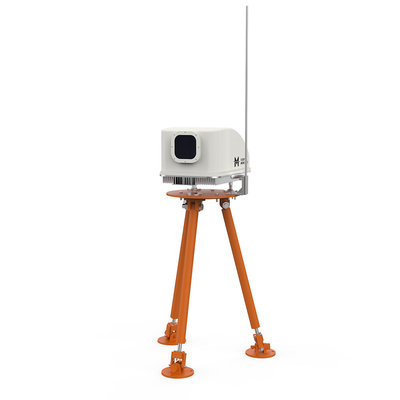

| Product Image
