| Storage Temperature: | -40 ～ +70℃ | Maximum Acquisition Distance: | 15km |
|---|---|---|---|
| Operating Temperature: | -40 ～ +55℃ | Vertical Range: | -10°~190° |
| Pointing Accuracy: | ±0.005° | Data Storage Time: | 5 To 18 Months |
| Distance Layers: | Up To 300 | Size: | 750mm*650mm*1150mm |
| High Light: | Long Range Wind Lidar,15km Acquisition Distance Wind Lidar,Wide Vertical Range Wind Lidar |
||
Equipped with various scanning methods such as PPI, RHI, DBS, and program scan, this lidar can adapt to different measurement requirements. The lightweight design, weighing less than 160kg, makes it easy to transport and install in various locations.
Designed for harsh environments, this lidar has a wide storage temperature range of -40 to +70℃, ensuring reliable performance in extreme weather conditions. With a sight detection distance of up to 10km (under the height of 600m), this Doppler Wind Lidar product is ideal for wind measurement in areas such as wind farms, airports, and environmental monitoring stations.
Our Doppler Wind Lidar product features Molas lidar technology, which provides high accuracy and precision measurement of wind speed and direction. This technology allows for 3D wind measurement and real-time monitoring, making it an essential tool for wind resource assessment, wind energy prediction, and weather forecasting.
| Lidar measurement | |
| IP Protection Level | Housing IP65,Inner ModuleIP66 |
| Operating Temperature | -40 ～ +55℃ |
| Sight detection distance | 10km (under The Height Of 600m) |
| Powered Supply | 220VAC±20% , 50Hz±10% |
| Pointing Accuracy | ±0.005° |
| Vertical measuring distance | 4km |
| Maximum acquisition distance | 15km |
| Distance Layers | Up To 300 |
| Operating Humidity | 0% ～ 95% RH |
| Sight Wind Speed Accuracy | 0.1m/s |
| Lidar measurement | remote |

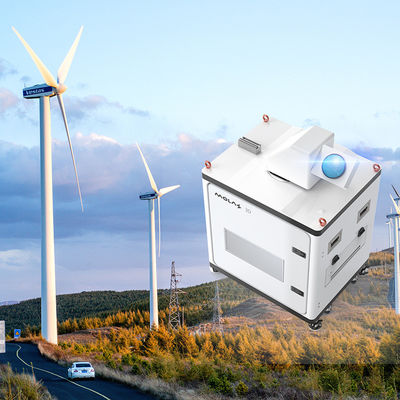

MOVELASER's 3D Scanning Doppler Wind Lidar Molas 3D is a highly advanced product that is perfect for Lidar measurement. This doppler wind lidar is perfect for Ground-based applications and can be used in a variety of scenarios.
One of the most common applications of this product is in weather forecasting. The Doppler Wind Lidar is a powerful tool that can be used to accurately measure wind speed and direction. This is especially helpful in predicting weather patterns and patterns of air pollution. Additionally, this product can be used in environmental monitoring, air traffic control, and aviation meteorology.
Another great application of this product is in wind power generation. By accurately measuring wind speed and direction, wind power generators can be positioned in the most efficient locations. This can help to increase the efficiency of wind power generation and reduce overall costs.
This product can also be used in military applications, such as battlefield surveillance and target tracking. The Molas 3D is highly accurate, with a pointing accuracy of ±0.005°, making it perfect for tracking moving targets.
The MOVELASER 3D Scanning Doppler Wind Lidar Molas 3D has a range of up to 15km, making it ideal for long-range applications. Additionally, this product is highly durable, with an IP protection level of Housing IP65 and Inner ModuleIP66.
Customers can order this product directly from MOVELASER, with a minimum order quantity of 1 set. The product will be delivered in an air box and has a delivery time of 1-2 months. MOVELASER accepts a variety of payment terms, including L/C, D/A, D/P, and T/T. The company has a supply ability of 200 sets per month and the product size is 750mm*650mm*1150mm.
