OEM ODM Wind Measurement Lidar -40C To 60C Work Temp

Name: OEM ODM Wind Measurement Lidar -40C To 60C Work Temp
Brand: MOVELASER
SKU: Molas CL
Price: 1 USD
Availability: InStock
Rating: 4.9 (135 reviews)

Large Image : OEM ODM Wind Measurement Lidar -40C To 60C Work Temp

Product Details:

Place of Origin:	China
Brand Name:	MOVELASER
Model Number:	Molas CL

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Dollar 1W$+ （Price consultation customer service）
Packaging Details:	Air Box
Delivery Time:	1-2 months
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	200 set ，1 month

Contact Now

Detailed Product Description

Ranging Method:	1ToF	Detection Distance:	200m@90% Reflectivity/ 140m@10% Reflectivity
Range Resolution:	≤0.1m	Measurement Accuracy:	±0.2m
Repeated Measurement Accuracy:	±0.2m	Resistance To Ambient Light:	100Klux
Wavelength:	905nm	Repeat Frequency:	20KHz Per Channel
Laser Safety Level:	Class 1	Range Of Working Temperature:	-40℃~+60℃
Survival Temperature Range:	-45℃~+65℃	Working Humidity Range:	0%~100% RH
Enclosure Rating:	IP65 (or According To Specific Needs)	Luminous Flux 3:	4.09°±0.2°
Real-time Data Products:	Device ID, Directly Measure Distance, Return Light Intensity, Data Valid Flag, System Status	Fieldbus:	Profibus DP / Modbus RTU / CANopen Three Fieldbus Protocols, And RS485 Communication Can Be Customized
Operating Power Consumption:	Within 60W	Supply Voltage And Maximum Current:	DC 24V, 3A
Size:	200×200×250mm
High Light:	ODM Wind Measurement Lidar , OEM Wind Measurement Lidar , wind speed lidar 60C Work Temp

Wind Lidar Range of working temperature -40℃~+60℃

1,Product introduction

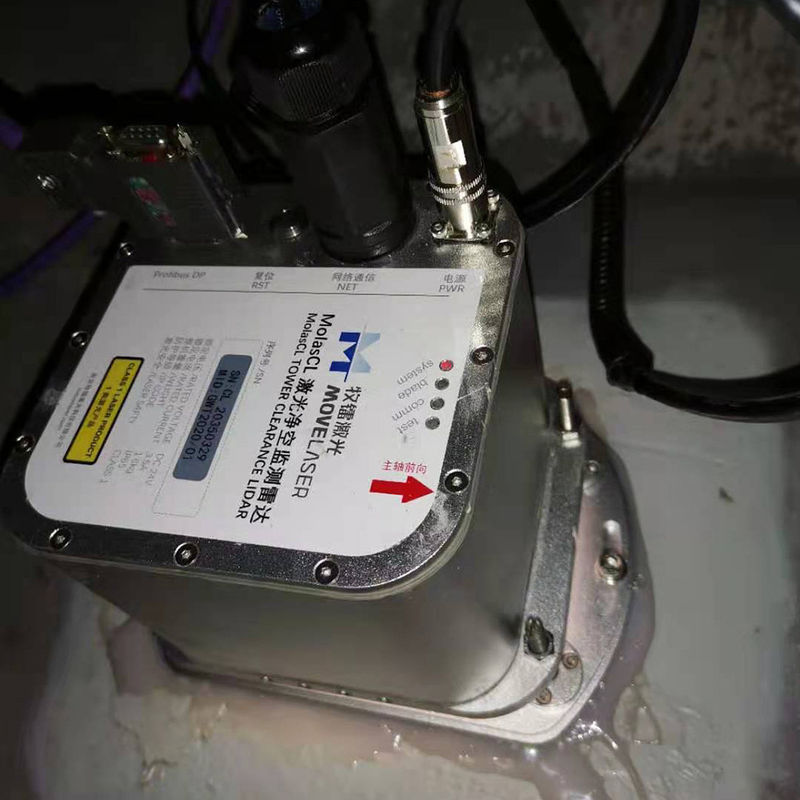

MolasCL laser clearance monitoring radar is a kind of lidar that monitors the blade tip clearance distance in real time. When the monitored blade clearance value is close to the specified minimum clearance value, the main control of the fan unit can immediately take protective measures, such as deceleration, propeller retraction, etc.

2,Technical Data Sheet

Ranging index
Ranging method	1ToF
Detection distance	200m@90% reflectivity/ 140m@10% reflectivity
Range resolution	≤0.1m
Measurement accuracy	±0.2m
Repeated measurement accuracy	±0.2m
Resistance to ambient light	100Klux
Optical index
Wavelength	905nm
Repeat frequency	20KHz per channel
Laser safety level	Class 1
Environmental adaptability
Range of working temperature	-40℃~+60℃
Survival temperature range	-45℃~+65℃
Working humidity range	0%~100% RH
Enclosure rating	IP65 (or according to specific needs)
Working acceleration range	-0.5g ～ 0.5g
Beam pointing
Luminous flux 1	0°
Luminous flux 2	2.05°±0.2°
Luminous flux 3	4.09°±0.2°
Output measurement results
Real-time data products	Device ID, directly measure distance, return light intensity, Data valid flag, system status
Fieldbus	Profibus DP / Modbus RTU / CANopen Three fieldbus protocols, and RS485 communication can be customized
Qther
Operating power consumption	Within 60W
Supply voltage and maximum current	DC 24V, 3A
Size	200×200×250mm

OEM ODM Wind Measurement Lidar -40C To 60C Work Temp 0
