| Detection Distance: | 200m@90% Reflectivity/ 140m@10% Reflectivity | Range Resolution: | ≤0.1m |
|---|---|---|---|
| Measurement Accuracy: | ±0.2m | Repeated Measurement Accuracy: | ±0.2m |
| Resistance To Ambient Light: | 100Klux | Wavelength: | 905nm |
| Range Of Working Temperature: | -40℃~+60℃ | Survival Temperature Range: | -45℃~+65℃ |
| Working Humidity Range: | 0%~100% RH | ||
| High Light: | real time lidar wind,140m lidar wind,real time wind measurement lidar |
||
Offshore Wind Lidar Molas CL IP65 Silver Prevent tower sweeping
| Product introduction
Molas CL tower clearance lidar is a kind of lidar that monitors the clearance distance of blade tip in real time. When the monitored blade clearance value is close to the specified minimum clearance value,the main controller of the fan unit can take protective measures immediately,Such as deceleration, retraction, etc.
| Application scenarios
The application of clearance radar in stock units can prevent tower sweeping, remove the power limit of dangerous units, and thus improve the power generation. The application of clearance radar in future units can reduce the blade cost and reduce the design pressure of units.
| Product parameters
| Ranging index | |
| Ranging method | 1ToF |
| Detection distance | 200m@90% reflectivity/ 140m@10% reflectivity |
| Range resolution | ≤0.1m |
| Measurement accuracy | ±0.2m |
| Repeated measurement accuracy | ±0.2m |
| Resistance to ambient light | 100Klux |
| Optical index | |
| Wavelength | 905nm |
| Repeat frequency | 20KHz per channel |
| Laser safety level | Class 1 |
| Environmental adaptability | |
| Range of working temperature | -40℃~+60℃ |
| Survival temperature range | -45℃~+65℃ |
| Working humidity range | 0%~100% RH |
| Enclosure rating | IP65 (or according to specific needs) |
| Working acceleration range | -0.5g ～ 0.5g |
| Beam pointing | |
| Luminous flux 1 | 0° |
| Luminous flux 2 | 2.05°±0.2° |
| Luminous flux 3 | 4.09°±0.2° |
| Output measurement results | |
| Real-time data products |
Device ID, directly measure distance, return light intensity, Data valid flag, system status |
| Fieldbus | Profibus DP / Modbus RTU / CANopen Three fieldbus protocols, and RS485 communication can be customized |
| Product Features

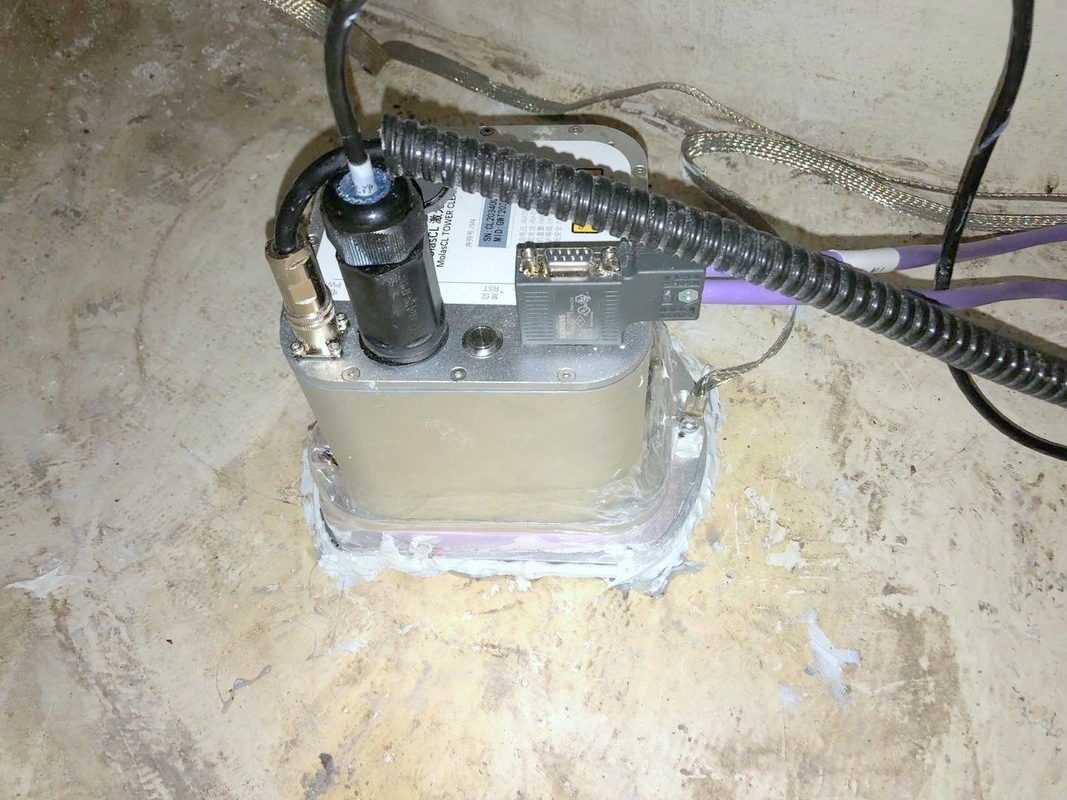

| Product Image
